Chemical Hose

Our Chemical Hoses deliver exceptional resistance to acids, solvents, and hazardous fluids. Ideal for chemical plants, agriculture, and industrial processing. Choose bulk hose or factory-assembled hoses built for safety and compliance.

Construction:

  • Tubeisclear ultra-high molecular weight polyethylene (UHMWPE)
  • Cover is blue or green abrasion, weather, and ozoneresistant EPDM rubber
  • Reinforcement is multiple layers of high tensile nylon cord with dual helix wire

Operating Temperature:

  • -40°F/+250° F (-40° C / +121° C)

Safety Factor:

  • 4:1

Application:

  • Pressure and suction application
  • Canhandle 98% of all types of chemicals, solvents, and corrosive liquids
Chemical Hose

Product Specifications

Part Number Color Hose I.D. (in) Hose O.D. (in) Working Pressure (PSI) Lenght (ft) Min. Band Radius (in) Weight (lbs/ft)
AHG-H-6"-GRN-UHMPE-W-HELIX-CORR Green 6 in - - 200 ft - -
AHG-H-4"-GRN-UHMPE-W-HELIX Green 4 in 4.7 in 200 200 ft 12 in 3.17 lb

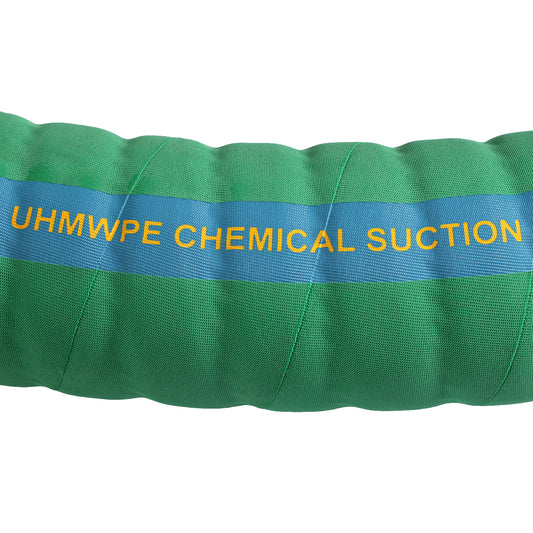

AHG-H-3"-GRN-UHMPE Green 3 in 3.6 in 200 200 ft 9 in 2.25 lb

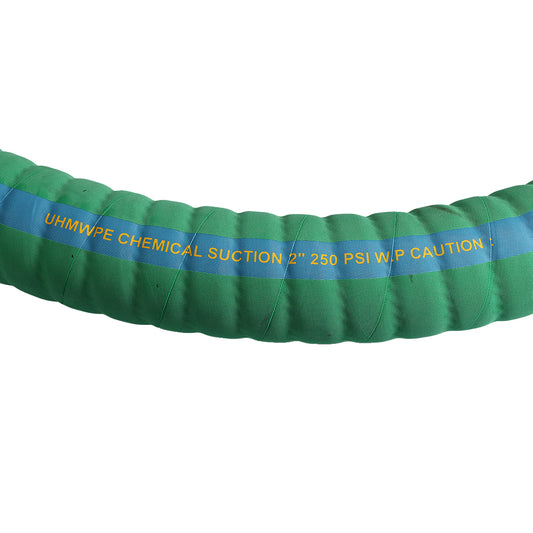

AHG-H-2"-GRN-UHMPE Green 2 in 2.6 in 200 200 ft 6 in 1.37 lb

4 products
